Slatbelt lubrication for tortilla ovens, NSF H1 release agents and application standard operating procedure

A tortilla oven slatbelt has three places that need lubrication, and the wrong product at any one of them shows up as a defect on the tortilla within an hour. The drive chains squeal and shed metal under load. The slat link pins and rollers seize, the belt tracks unevenly, and one edge of the tortilla bakes longer than the other. The slat surface loses its release film, masa welds to the steel, and the next tortilla picks up the residue from the prior one. Three different surfaces, three different products, one shared application schedule. This is the standard operating procedure your maintenance crew runs to keep the slatbelt healthy through a full production day.

This guide is for maintenance leads, plant supervisors, and QA technicians who own the lubrication program on a slatbelt-style tortilla oven. It explains where the three lubrication points are, which NSF-registered product belongs at each one, how often to apply each, what the common failure modes look like, and how to lay out the cabinet so the line crew never picks up the wrong jug under time pressure.

The three lubrication zones on a slatbelt oven

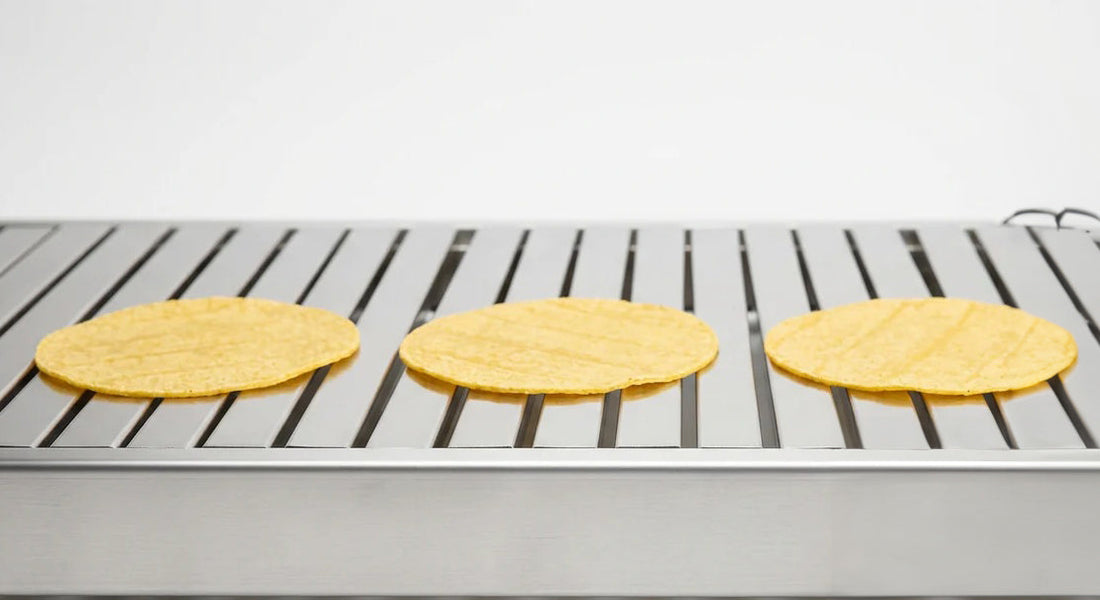

A slatbelt is a continuous loop of metal slats joined by side chains, threaded through the oven by a motorized drive sprocket on each side. The tortilla rides on the top run of the slats, passes through the bake zone (typically 220 C to 260 C in a corn tortilla oven), and the cooled slats return underneath. Three surfaces on the assembly need separate lubrication treatment.

1. The drive chains, left and right side. The two side chains pull the slatbelt through the oven and absorb the temperature swing of every cycle. They want a high-temperature, NSF-registered chain lubricant that does not smoke or carbonize at bake-zone temperatures. Wrong product here means the chain seizes, the belt tracks crooked, and within a shift you have stopped the line.
2. The slat link pins and rollers. Each slat is connected to the next by a pin and a roller assembly that rides on a track or guide rail. These pivot every cycle and accumulate flour dust, masa fragments, and oxidation. They want NSF H1 food-grade grease at scheduled intervals, applied via a grease gun at the dedicated zerk fittings or directly onto exposed pivots.
3. The slat surface itself. The top face of every slat carries the tortilla through the bake. It needs a release agent so the tortilla parts cleanly from the steel and so dough scraps do not glue to the slats and contaminate the next cycle. The right product here is a food-grade silicone release agent, not a chain lubricant and not a grease.

The reason most maintenance teams get this wrong is that one product cannot legitimately serve all three zones. A graphite chain lube on the slat surface will mark the tortilla black. A silicone release agent on the drive chain will burn off in the bake zone within an hour and leave the chain dry. A grease anywhere a tortilla rides will smear into the masa and produce dark spots. Three zones, three products, on a coordinated schedule. For a deeper read on the chain side specifically, see the tortilla oven chain lubrication guide and the graphite chain lubricant picker guide.

Zone 1, the drive chains: NSF H1 high-temperature chain lubricant

The drive chains live in the bake zone for half of every cycle, so the lubricant has to hold its film at temperatures up to 260 C without smoking, carbonizing, or thickening into varnish. Two product families do this job on a tortilla oven, and both are in the Tortillaworld catalog.

• Graphite-based chain lubricant. A water-based graphite formulation that flashes off the carrier and leaves a dry graphite film on the chain pins and rollers. The graphite is stable at oven temperatures, it does not smoke, and it lays down a low-friction barrier that handles the cycle stress. The TortillaTek graphite-based ready-to-use chain lubricant in 5 US gallon pails is the industry default for slatbelt drive chains and is positioned in the catalog explicitly for "oven slat belt chains".
• High-temperature synthetic chain lubricant. A liquid synthetic NSF H1 chain oil that holds its film at high temperature and is rated for incidental food contact. The Petro-Gard 220 oven chain lubricant in 1 US gallon jugs or the Petro-Gard 220 in 5 US gallon pails covers this category. Pick this over graphite when the chain is partially shielded and the oven runs without a dedicated graphite handling station.

For a spray-format alternative on smaller ovens or for spot maintenance, the FG Pure Lube high-temperature H1 synthetic spray lubricant handles low and high speed chains, casters, and conveyors with the same NSF H1 registration.

Application standard operating procedure, Zone 1.

• Frequency. Once per shift on continuous production, with a refresh at the 4-hour mark on shifts longer than 8 hours. After a long maintenance shutdown (over 24 hours), apply at the start of the first production shift.
• Method. With the oven cool and locked out, apply the chain lubricant to the inside of the chain links on both sides, working through one full belt revolution. For graphite, a 1-inch brush at the top of the side chain run is the cleanest application. For Petro-Gard 220, a controlled drip from the jug or a chain oiler reservoir works.
• Quantity. Less than most operators expect. A film, not a flood. Excess oil drips into the bake zone and smokes off the slats below.
• Visual cue for refresh. Audible squeal from the drive sprockets, visible varnish on the chain links, or chain-tension drift over a short period. Do not wait for the chain to seize.

Zone 2, the slat pins and rollers: NSF H1 food-grade grease

The pivots between slats and the rollers under the slats are sealed contact points that see the same temperature swing as the chain but at lower speed. They need a thicker lubricant that stays in the joint, resists wash-out during sanitation, and carries an NSF H1 registration for incidental food contact.

• Aluminum-complex H1 synthetic grease. The Petro-Gard FMG-2 high-temperature H1 synthetic grease in tubes is the industry default for slat link pins and roller bearings on tortilla ovens. Aluminum-complex thickener, NSF H1 registered, formulated for bakery, dairy, and tortilla equipment with high-temperature exposure.

For a deeper read on grease selection at high temperature, see the high-temperature greases for food processing guide.

Application standard operating procedure, Zone 2.

• Frequency. Once per week for slat pins on a typical production calendar. Once per month for the under-slat rollers if they are sealed and once per two weeks if they are exposed to flour dust.
• Method. Grease gun with the FMG-2 cartridge, one or two pumps per zerk fitting, until clean grease appears at the joint. For pivots without zerks, a small dab applied with a wooden tongue depressor or a clean disposable applicator. Never apply grease with a rag that has been used elsewhere on the line.
• Quantity. Two pumps per zerk is the right starting point for most slat link sizes. More than that and the excess pushes out into the bake zone and produces a smoke-off event the first cycle after restart.
• Visual cue for refresh. Slat tracking that drifts to one side, a clicking or grinding sound from the underside of the belt, or visible flour-and-oxide buildup at the pin joint.

Zone 3, the slat surface: NSF-registered food-grade silicone release agent

The top face of every slat carries the tortilla through the oven, so this is a release point, not a lubrication point. The right product is a food-grade silicone formulated as a release agent. The chemistry is the same as the silicone applied at the press platen and the conveyor edges, which means a single bulk SKU at the central mixing station can serve the press station and the slatbelt with one inventory line.

• Concentrated 800 silicone, dilute on site. The Econo-Max concentrated 800 silicone in 5 US gallon pails at the 5 to 1 dilution (5 + 1 = 6) is the highest-volume slatbelt release agent in the catalog. The product page notes it "reduces oven slat-belt maintenance cost" because the release film prevents masa from welding to the slats and reduces the manual scraping at end of shift.
• Concentrated 800 silicone, case-pack format. The Econo-Max two 5-liter jug case pack is the same chemistry in a receiving format that smaller plants prefer over pail handling.
• TortillaTek MAX 800 concentrate. The TortillaTek MAX 800 concentrated food-safe silicone in 5 gallon pails at the 12 to 1 dilution is the higher-yield format. One pail makes about 13 pails of working solution, lowest cost per finished liter at production volume.
• TortillaTek MAX 800 ready-to-use. The TortillaTek MAX 800 ready-to-use silicone in 5 gallon pails for plants that prefer to skip on-site dilution.

For a deeper read on which silicone format fits which plant, see the concentrated 800 vs ready-to-use comparison, the food grade silicone spray vs concentrate, and the release agent application guide.

Application standard operating procedure, Zone 3.

• Frequency. Once at the start of every production shift, with a refresh at the 3 to 4 hour mark on standard 60 to 100 tortilla per minute lines. Halve the refresh interval for higher-speed lines (over 120 tortillas per minute) and for wetter masa above 65 percent water content.
• Method. A pre-diluted working solution in a stainless food-grade applicator (sprayer or wick applicator) applied to the top face of the slats during the belt's slow rotation under sanitation cycle, before the first tortilla loads. Never apply during production. The film sets in seconds at oven temperature.
• Quantity. A thin even film, not a wet coating. Excess silicone causes the masa to skid unevenly during loading and produces a rippled-edge tortilla. Less is more, applied on the right rhythm.
• Visual cue for refresh. Tortillas with one corner sticking, masa scraps welded to the slats at end of cycle, or torn-edge defects at the unloading end.

The integrated weekly schedule

The slatbelt standard operating procedure is easier to enforce when the three zones share one calendar. A representative weekly schedule for a single-shift line.

• Daily, start of shift. Zone 1 chain lubricant once. Zone 3 silicone release agent once, with a refresh at the 3 to 4 hour mark.
• Weekly, scheduled maintenance day. Zone 2 grease at all slat pins, plus a chain inspection. The under-slat rollers depending on the design (sealed once per month, exposed every two weeks).
• Monthly. A full slatbelt clean-down with food-safe degreaser, followed by a fresh application of all three lubricant types. Replace any visibly worn slat pins. This is also the point to check the chain tension and the side-track guide rail clearance.

The schedule fits a one-page laminated checklist at the line operator's station, with a color-coded box for each zone matching the cabinet color code. Most plants land on green for silicone, yellow for graphite or chain oil, and red for grease. Color discipline is what keeps the wrong jug from arriving at the wrong zone under time pressure.

Common slatbelt lubrication mistakes

Five mistakes account for the majority of the slatbelt lubrication failures we see on customer plants.

• Using one product for all three zones. Usually it is the chain oil applied to the slat surface, which marks the tortilla and makes the masa-quality findings impossible to trace. The fix is the three-product setup with the cabinet color code, not a different single product.
• Over-greasing the slat pins. Two pumps becomes four becomes the whole zerk full of grease, the excess pushes into the bake zone, and the first cycle after restart produces a smoke-off and a temporary defect tortilla. Two pumps per zerk, full stop.
• Skipping the silicone refresh on long shifts. The release film depletes within 4 hours on a typical line, so a 12-hour shift needs at least two refreshes. Plants that apply only at start of shift are over-relying on the initial film and producing torn-edge tortillas in the back half of the shift.
• Storing release agent and chain lube on the same shelf. Cross-contamination is real. Color-coded cabinets with physical separation prevent the wrong product from reaching the wrong zone.
• Using a non-NSF-registered product. Without a registration number on the label, the product is not enforceable in audit. Source NSF-registered SKUs at every zone, regardless of how favorable the unit price is on a non-registered alternative.

For a broader read on the certification side, see the NSF H1 vs H2 vs H3 explainer and the food-safe lubricants complete guide.

Tortillaworld product set for a slatbelt program

A complete slatbelt lubrication program from the Tortillaworld catalog covers the three zones with four SKUs at most, sized for a typical mid-volume plant.

• Zone 1, drive chains. TortillaTek graphite-based ready-to-use chain lubricant, 5 US gallon pail for graphite-based programs, or Petro-Gard 220 oven chain lubricant, 5 US gallon pail for synthetic NSF H1 programs.
• Zone 2, slat pins and rollers. Petro-Gard FMG-2 high-temperature NSF H1 synthetic grease in tubes, ordered by the case for a typical maintenance schedule.
• Zone 3, slat surface release agent. Econo-Max concentrated 800 silicone, 5 US gallon pail at the 5 to 1 dilution, or the TortillaTek MAX 800 concentrate at the 12 to 1 dilution for the highest-yield format.
