Release agent for tortilla machines, the application guide

Sticky masa at the press is rarely a masa problem. It is a release agent problem. The press platen has lost its silicone film, the tortilla edge welds to the platen during the press cycle, and the next tortilla picks up the residue from the prior one. Within an hour the line is producing tortillas with torn edges and inconsistent thickness, the operator throws away the bad batch, and the QA log shows a "masa quality" defect that traces back to maintenance, not to the masa supplier. The right release agent for tortilla machines, applied on the right schedule, prevents the whole sequence.

This guide is for maintenance leads, line supervisors, and QA technicians who own the release agent program. It covers what a release agent is, where release agents go on a tortilla line, application frequency by line speed, common mistakes that ruin masa quality, and how Tortillaworld silicone doubles as a release agent for the tortilla press, dies, conveyor edges, and oven entry rollers.

What a release agent is, NSF H1 vs 3H vs H3

A release agent is a substance applied to a metal or composite surface that prevents food from sticking to it. Usually a thin film of silicone, oil, wax, or specialty polymer that creates a slip layer between surface and food. Release agents are routine on tortilla lines, bakery oven trays, and any food production surface where food is sticky and equipment is hot.

NSF registration tiers cover release agents, and the distinction matters for audit defensibility.

• NSF H1, incidental contact. H1 lubricants and release agents are for points where contact with food is possible but unintended. The contact must be brief, technically unavoidable, and limited in volume. On a tortilla line, the press platen meets this definition: the silicone is on the platen face, the masa transfers a trace amount during the press cycle, but the silicone is not added to the masa intentionally.
• NSF 3H, direct contact release agent. 3H is the modern release-agent class for products applied to surfaces that touch food every cycle by design. Examples are oven release agents sprayed onto bake trays before loading, griddle release agents sprayed onto the cooking surface, and specialty cutter release agents applied to blade surfaces.
• NSF H3, soluble oils. The legacy H3 class covers soluble oils used to prevent rust on hooks, trolleys, and similar non-food-contact surfaces. Some food-grade silicone formulations were registered under the legacy H3 class before the modern 3H class became standard, including the silicone products in the Tortillaworld catalog described later in this guide. The chemistry is the same food-grade silicone either way; the registration paperwork is what differs.

For most tortilla lines, a press platen release agent is registered under one of these tiers. Source from a vendor whose catalog states the registration class on the product page. For a deeper read see the NSF tier explainer and the food grade lubricant guide.

Where release agents go on a tortilla line (presses, ovens, conveyors)

The four standard release agent application zones on a tortilla line, with notes on what is needed and why.

1. Press platen and contact face. The most common release point. A thin even silicone film keeps masa from welding to the hot platen during the press cycle. This is the highest-frequency application on the line, refreshed every 2 to 4 hours during a shift. The right product is a food-grade silicone release agent for tortilla press platens.
2. Cutting and forming dies. Especially relevant for chip lines and shaped tortilla products. Dies need silicone for the same reason platens do. The die geometry can make application trickier, so a small soft brush is usually the best applicator. Apply at start of shift, refresh every 4 to 6 hours.

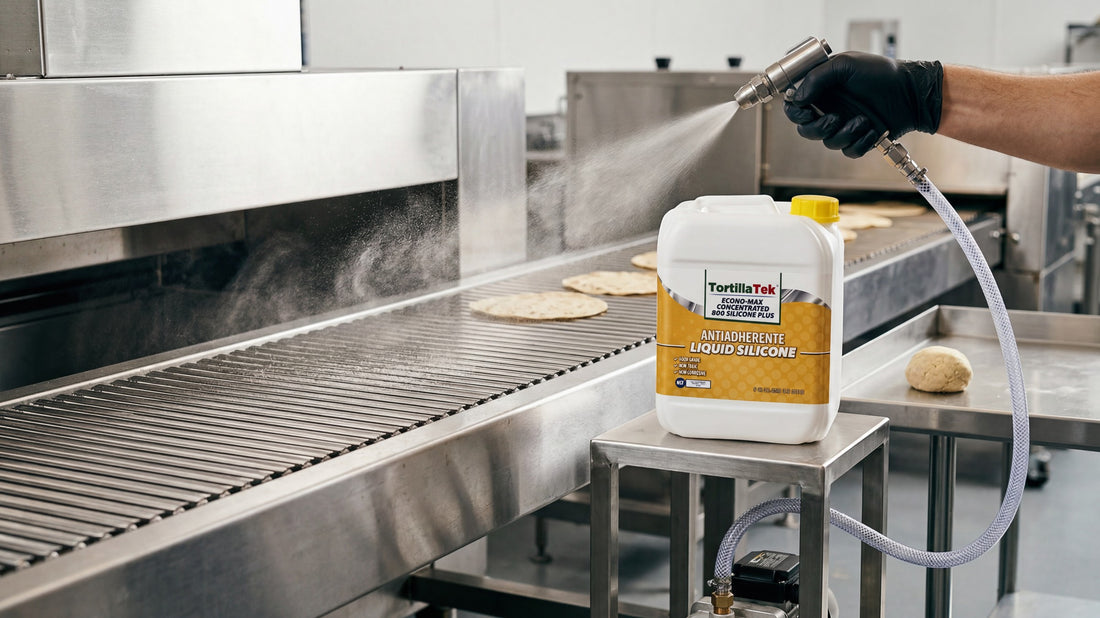

3. Conveyor belts and slide rails. Belts that carry tortillas between forming and cooking benefit from a thin silicone film on the belt edges and on the underlying slide rails. The goal is to reduce friction and prevent dough scraps from gluing to the belt. Apply during sanitation, never with food on the belt.
4. Oven entry rollers and transition surfaces. The cool side of the oven entry sees thermal expansion stress and dough scrap accumulation. Silicone applied here keeps tortillas sliding into the oven cleanly. Lower volume application, every shift or every other shift.

Inside the oven, the chain runs above the silicone window (220 C to 260 C in the bake zone). The oven chain wants graphite chain lubricant, not silicone. See the graphite chain lubricant picker guide. Direct application of a release agent to the oven floor or to a bake-zone chain in contact with masa would be a 3H-class application, not the same product family used at the press platen.

Application frequency by line speed

How often you re-apply silicone at each release point depends on three factors: line speed (tortillas per minute), masa moisture, and platen surface condition. Higher line speed depletes the silicone film faster. Wetter masa transfers more silicone per cycle. Worn or pitted platens hold silicone less effectively than smooth platens.

A defensible starting point for a typical 60 to 100 tortilla per minute press at standard masa moisture (55 to 60 percent water content) on a smooth platen:

• Press platen, start of shift. Initial application, thin even film via spray or brush, full coverage of the contact face.
• Press platen, refresh during shift. Every 2 to 4 hours. The visual cue for refresh is the first sign of inconsistent release: tortillas with torn edges or with one corner sticking. Do not wait for the line to show defects across multiple tortillas.
• Cutting and forming dies, start of shift. Initial application via small soft brush.
• Cutting and forming dies, refresh during shift. Every 4 to 6 hours, dictated by the line speed and the cut shape.
• Conveyor belt and slide rails, during sanitation. Once per shift at sanitation, or once per day at the end of the production day. Never during production with tortillas on the belt.
• Oven entry rollers, every shift. Once at the start of shift, with a refresh at the 4 hour mark on long shifts.

For higher-speed lines (over 120 tortillas per minute), halve the refresh interval at the press platen. For wetter masa (above 65 percent water content), halve again. Some specialty corn tortilla recipes run wet enough that the press platen needs a refresh every 90 minutes.

The goal of the schedule is not maximum silicone application, it is consistent release without waste. Excess silicone on the platen actually hurts release because the masa skids unevenly during the press cycle. Less is more, applied on the right rhythm.

Common mistakes that ruin masa quality

Five mistakes show up repeatedly on plants with masa-quality issues tied to the release agent program.

• Over-applying silicone. A heavy layer causes the masa to skid unevenly during the press cycle, producing tortillas with rippled edges. The fix is a thinner film, not a different product.
• Using a non-NSF-registered "food grade" product. Without an NSF registration number on the label, the product is not enforceable in audit. Source an NSF-registered SKU.
• Storing release agent with non-food-grade lubricants. Cross-contamination risk. Color-code the cabinet: green for food-grade silicone, red for H2, yellow for graphite chain.
• Using grease at a release point. Grease is too thick and smears into the masa. Grease is for bearings, silicone is for release. Keep a dedicated silicone applicator at the press station.
• Skipping the refresh schedule. Build the refresh into the line operator's start-of-hour checklist, not into a separate maintenance ticket.

These mistakes are about discipline and layout, not chemistry. A 30-minute training once a year on these five points usually eliminates the masa-quality findings tied to release agent application.

Tortillaworld silicone, when it doubles as a release agent

Tortillaworld silicone is NSF-registered and is the appropriate release agent for the press platens, dies, conveyor edges, and oven entry rollers on a tortilla line. The same chemistry serves both the lubrication and the release functions because the surface contact is incidental at every one of these points. The catalog covers the formats and pack sizes most plants need.

• Tortillatek Max 800 ready to use, 5 gallon pail. The ready-to-use food-safe silicone in a 5 US gallon pail. No mixing station required, ships at use strength. Right format for plants that prefer to skip on-site dilution and for new accounts ramping up before they invest in a concentrate workflow.
• Tortillatek Max 800 concentrate, 5 gallon pail. The concentrated food-safe silicone at a 12 to 1 dilution. Mix on site for the lowest cost per finished liter at production volume. One 5 gallon pail of concentrate yields about 13 pails of working solution after dilution.
• Econo-Max concentrate, 5 gallon pail. The Econo-Max 5 gallon pail at a 5 to 1 dilution (5 + 1 = 6). The most common bulk format in the tortilla industry, sized for a single mixing station feeding multiple application points.
• Econo-Max concentrate, two 5 liter jug case pack. The Econo-Max two 5 liter jug case pack: two jugs per case, 10 liters of concentrate per case, makes 60 liters of working solution at the 5 to 1 ratio. Right pick for plants that prefer case-pack receiving over pail handling.

For most tortilla plants, the release agent program reduces to a dedicated silicone applicator at each application point, plus a bulk concentrate (pail or case pack) at the central mixing station, plus a written refresh schedule that the line operator follows on the start-of-hour checklist. With those three elements in place, the masa quality issues that trace back to release agent failures usually clear within two weeks.

Tortillaworld has supplied food-grade lubricants to tortilla plants Since 2012. If your line is producing torn-edge or rippled-edge tortillas and you suspect the release agent program, send a photo of one defect tortilla, the current refresh schedule, and the silicone product you are using. We can usually call the right adjustment from the photos and the schedule in a single email.
