Food safe silicone lubricant, picking the right grade for tortilla equipment

Food safe silicone lubricant is a polydimethylsiloxane based fluid registered NSF H1 for use at points of incidental food contact. The base oil and additive package come from the FDA 21 CFR 178.3570 list, which means the product is allowed at press platens, oven entry rollers, and conveyor surfaces where trace transfer to a tortilla is unavoidable but not intended. It is the standard release lubricant for industrial tortilla lines.

This guide is for plant managers and maintenance leads picking among silicone formats. It covers what makes a silicone food safe, how aerosol versus concentrate versus ready-to-use formats compare, where each one fits on a tortilla line, dilution math for the 800 concentrate, storage rules, and a product map so you can match a Tortillaworld SKU to your line.

What makes a silicone lubricant food safe, the NSF H1 definition

Silicone is the family name for polymers built from a silicon-oxygen backbone with methyl side chains. Industrial silicone fluids have low surface tension, high thermal stability up to about 200 C, hydrophobic behavior, and no reactivity with food acids or sugars. Those properties make silicone the right chemistry for release applications, where the goal is to keep masa from sticking to a metal surface.

"Food safe" is not the same as "food grade" and neither phrase has legal meaning on its own. The enforceable standard is NSF H1 registration. NSF H1 is the modern continuation of the old USDA H1 category that ended in 1998. To earn the registration, every base oil and every additive in the formula must be listed in FDA 21 CFR 178.3570, the section of the Code of Federal Regulations that lists materials cleared for incidental food contact. NSF International audits the formula and the production site every year before granting the listing.

Three things follow from the H1 definition.

• The product is allowed at points where contact with food is possible but unintended. Press platens, conveyor edges, oven entry rollers, and slide bars all qualify on a tortilla line.
• The product is not approved for direct application to a food contact surface that touches food intentionally. That is the 3H tier (release agents). H1 is the broader and more common category.
• The registration is product-specific. A "food grade silicone spray" without an NSF registration number is not enforceable as food safe in audit. Always look for the registration number on the label and verify it in the NSF white book at info.nsf.org.

For plants subject to SQF, BRCGS, FSSC 22000, or AIB audits, the white book printout for every NSF-registered lubricant on site is what the auditor will ask to see. Keep a binder, paper or electronic, with current-year listings. Bearing applications use a different tier of food-safe lubricant, see the NSF H1 NLGI 2 food safe grease guide for the spec combination on bearings, gears, and high-load contact points.

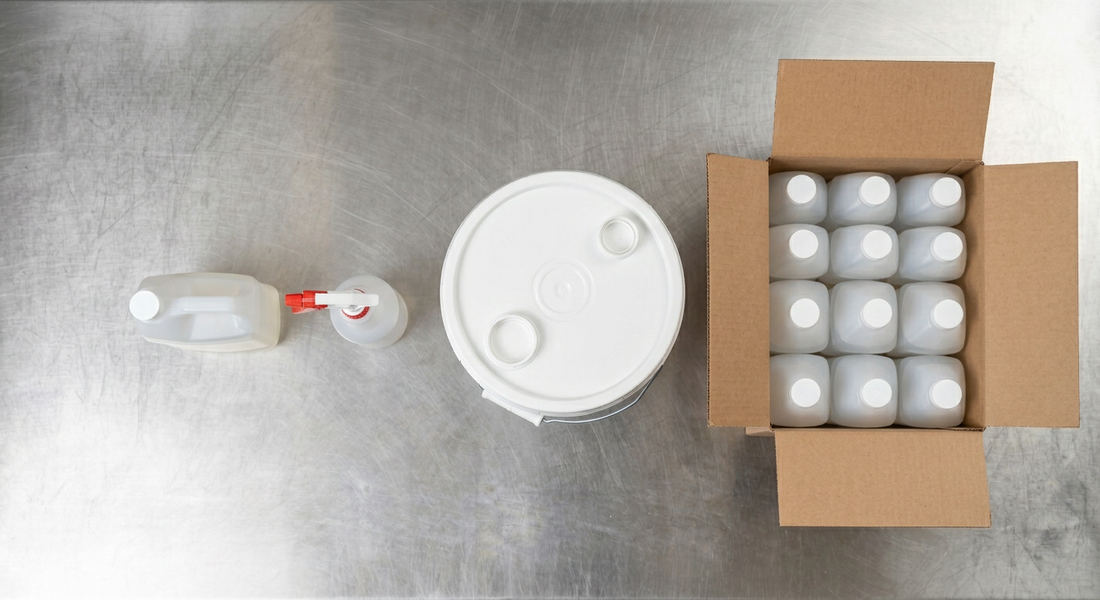

Aerosol vs concentrate vs ready to use, the three formats and when each wins

Food safe silicone ships in three common formats. Each fits a different production reality. Cost per finished liter varies by an order of magnitude across the formats, so the choice matters.

Aerosol cans. Convenient for hard-to-reach spots, occasional touch-ups, and small kitchens. The propellant adds cost per ounce, and the spray pattern wastes product on surrounding equipment. Aerosols are the right call for a maintenance van that visits multiple sites, or for a test kitchen evaluating a new formulation. They are not the right call for a production line that goes through more than a few cans per week. For a deeper look at when an aerosol genuinely beats a trigger or a diluted concentrate, see the food grade silicone spray comparison.

Ready to use trigger or pour bottles. The silicone is pre-diluted to the working concentration. No mixing required. Lower cost per ounce than aerosol, faster setup than concentrate. The right format for plants with moderate volume, occasional applications, or a workforce that does not want a dilution station. Tortillatek Max 800 ready to use is the standard ready-to-use SKU, shipping in trigger bottles for direct-to-surface application at the press, the conveyor, and the oven entry.

Concentrate, diluted on site. The lowest cost per finished liter. The highest setup overhead. The right format for plants running shifts with steady silicone consumption, where the math on dilution savings beats the labor cost of mixing. Tortillatek Max '800' is part of the product name (Econo-Max 800, Tortillatek Max 800), not the dilution ratio. The actual dilution is 1:5 per the product label. dilution concentrate. Mix one part concentrate with eight parts water, store the working solution in clearly labeled bottles, and dose at application points. The math is covered in detail in section 4. For a side-by-side cost-per-liter analysis between the two Tortillaworld formats, see the concentrated 800 silicone vs ready to use guide.

The right answer depends on consumption volume, labor cost, and storage capacity. As a rough rule, plants using more than 20 liters of working solution per month save real money on concentrate. Plants using less should run ready-to-use and skip the mixing station. Plants doing rare touch-ups should keep an aerosol on the maintenance cart.

Application points on a tortilla line, presses, dies, conveyors, oven entry

Where you apply silicone matters as much as which format you use. The four standard application zones on a tortilla line are below, with a brief note on dose and frequency.

1. Press platen and contact face. The most common silicone application point. A thin even film keeps masa from welding to the platen during the press cycle. Apply via spray or brush at line start and refresh every 2 to 4 hours during a shift, depending on dough moisture and line speed. Excess silicone on the platen actually hurts release because the masa skids unevenly. Less is more.
2. Cutting and forming dies. Especially relevant for chip lines and shaped tortilla products. Dies need silicone for the same reason platens do, the geometry just makes application trickier. A small soft brush is usually the best applicator. Apply at start of shift and refresh every 4 to 6 hours, depending on product type and run length.
3. Conveyor belts and slide rails. Belts that carry tortillas between forming and cooking benefit from a thin silicone film on the belt edges and on the underlying slide rails. The goal is to reduce friction and prevent dough scraps from gluing to the belt. Apply via low-pressure spray during sanitation, never during production with food on the belt.
4. Oven entry rollers and transition surfaces. The cool side of the oven entry sees thermal expansion stress and dough scrap accumulation. Silicone applied here keeps tortillas sliding into the oven cleanly. This is a low-volume application, every shift or every other shift, depending on line speed.

What silicone is NOT for: oven chains (use a graphite chain lubricant rated for above 230 C), high-load bearings (use NSF H1 NLGI 2 grease), or sealed gearboxes (use NSF H1 oil with the right viscosity grade). Silicone is a release lubricant. It is not a structural lubricant. Using it where structural lubrication is needed leads to fast wear and a maintenance complaint.

Food-safe silicone is also the right pick for elastomer o-rings and gaskets along the line. Silicone does not swell common nitrile and EPDM elastomers, and the same 21 CFR 178.3570 listing covers occasional contact with sealing surfaces in CIP and product-zone fittings. Many plants treat o-ring relubrication as a separate scheduled task, but the chemistry is identical to the release-agent applications above. For a focused look at release-agent practice on tortilla presses and conveyors, see the release agent application guide.

How much you actually need, dilution math

For the "800" in the product name, not a temperature or a viscosity grade. Mix one part concentrate with eight parts clean water to produce the working solution. The working solution is what gets sprayed or brushed at application points.

Working through the math for a typical mid-size single-line plant on two shifts:

• Daily silicone consumption per line, working solution: 4 to 6 liters across 4 application points.
• Daily concentrate consumption: 4 to 6 liters of working solution at 5 to 1 dilution means 0.44 to 0.67 liters of concentrate.
• Monthly concentrate consumption (22 production days): 9.7 to 14.7 liters.
• Annual concentrate consumption: 116 to 176 liters.

Working-solution consumption depends on plant size, application frequency, and per-application spray volume. A small single-shift plant with light application can stretch a 5-gallon pail of concentrate across 5 to 8 years. A typical mid-size plant running two shifts on a single line burns through a 5-gallon pail in about 12 to 18 months. A high-volume multi-line operation can finish a pail in 6 to 10 weeks. To estimate your own plant, multiply your application points by sprays per shift by shifts per day by shift days per month by your typical spray volume in liters; that gives liters of working solution per month, about 5 years for a small single-shift plant, about 9 months for a mid-size two-shift one-line plant, about 6 weeks for a high-volume multi-line plant (assuming 1:5 dilution per product label), and divide about 5 years for a small single-shift plant, about 9 months for a mid-size two-shift one-line plant, about 6 weeks for a high-volume multi-line plant (assuming 1:5 dilution per product label). Or send us your line spec and we will run the math for you.

Cost-per-liter math compared to ready-to-use: at the 5 to 1 ratio, one pail of concentrate yields 113.4 L per 5-gallon pail, 60 L per case (two 5-liter jugs), 30 L per single 5-liter jug (all at 1:5 dilution) solution. The same volume of ready-to-use product would cost 4 to 6 times more, depending on packaging size. The breakeven on the labor of mixing usually lands at 20 to 30 liters per month of working solution. Below that, ready-to-use is cheaper after labor. Above that, concentrate is the right call.

If you want a quote on the 5 gallon pail with cost per finished liter included, send your monthly working-solution liters and we will return a SKU-mix recommendation that fits your consumption profile.

Use clean tap water for dilution. Hard water with high mineral content can leave deposits on application surfaces, but it does not affect the silicone chemistry. If your plant has a softener loop or a reverse osmosis line for sanitation use, prefer that water for dilution. Otherwise tap water is fine.

Storage, shelf life, and avoiding contamination

Silicone concentrate and ready-to-use have different storage profiles. Treat them differently.

Concentrate, sealed. Shelf life of 24 months from production date when stored sealed in the original container at 5 C to 35 C. Keep out of direct sunlight to avoid container heating. Do not freeze. The production date is on the bottom of the pail or jug, not the purchase date. Track the production date in your inventory system and rotate first-in first-out.

Concentrate, opened. Once opened, the seal is broken, but the concentrate is stable for 12 months in the original container if recapped tightly between uses. The risk after opening is contamination from a dirty dispenser, not chemical degradation.

Working solution (diluted concentrate). The diluted product has a much shorter shelf life because the water phase can support microbial growth. Mix only what you need for a 7 to 14 day window. Store in opaque labeled bottles, ideally HDPE, never in clear bottles where light reaches the solution. Discard any working solution that looks cloudy, smells off, or has visible particulates.

Ready-to-use. Shelf life of 12 to 18 months from production date in the original container. The pre-dilution means the product is already in its working form, so the shelf life is shorter than concentrate. After opening, use within 6 months for best results.

Cross-contamination prevention is the second risk after shelf life. Never refill an H1 jug from an H2 drum. Never share a dispenser between H1 and non-H1 products. Color-code the storage area: green for H1 silicone, red for H2 industrial lubricants, yellow for graphite chain products. Train new techs on the color code in their first week.

Tortillaworld product map, four silicone SKUs and which one fits your plant

The Tortillaworld silicone catalog has four SKUs that cover the format and packaging combinations covering the consumption windows we see across small, mid-size, and high-volume plants. Pick by consumption volume and receiving preference.

• Tortillatek Max 800 ready to use, trigger bottles. The right starter SKU. Lower consumption volume, plants with no mixing station, occasional applications. Order the ready-to-use bottles and dose direct from the trigger.
• Tortillatek Max 800 concentrate, smaller pack. The right SKU for plants that have just started mixing and want to confirm the dilution math before committing to bulk pail receiving. Same chemistry as the pail format, smaller volume.
• Econo-Max Concentrated 800 Silicone Plus, 5 gallon pail. The bulk concentrate SKU. The right pick for plants running 20 plus liters of working solution per month. Best cost per finished liter in the catalog. Order on a 30-day cycle, rotate first-in first-out, store in a labeled cabinet.
• Econo-Max Concentrated 800 Silicone Plus, two 5-liter jugs (10 L concentrate, makes 60 L working solution) pack. The case pack format, two 5-liter jugs (10 L concentrate, makes 60 L working solution) of 2.5L per case for 80 liters total. The right pick for plants that prefer case-pack receiving over pail receiving, or for plants running multiple lines from a central mixing station. Same chemistry as the 5 gallon pail. case of two 5-liter jugs (10 L concentrate, makes 60 L working solution) when receiving and storage favors smaller jug formats.

Many plants run a combination. A typical setup is bulk concentrate (pail or case pack) at the central mixing station, plus a stock of ready-to-use trigger bottles at each application point for fast refills during a shift. The ready-to-use bottles also serve as the backup if the mixing station is offline for cleaning.

Tortillaworld has supplied food-grade lubricants to tortilla plants Since 2012. If you are not sure which silicone SKU mix fits your line, send the rough monthly consumption (working-solution liters) and the number of application points across your shifts. We will recommend the SKU mix and the dilution-station setup for your plant size.

Need a tortilla-line lubricant audit? Email a maintenance lead with your monthly working-solution liters and the number of application points, and we will send a SKU-mix recommendation within 24 hours.
