Graphite chain lubricant for tortilla oven chains, picker guide

A tortilla oven chain runs hot, carries dough crumbs, and sees abrasive masa flour every shift. Most lubricants flash off, gum up, or carbonize before they reach the second hour of a production day. Graphite chain lubricant is the answer maintenance crews land on after watching cheaper oils fail. The question is not whether to use graphite. It is which product fits your line and how to apply it without over- or under-dosing the chain. The TortillaTek Graphite Chain Lubricant Oven is built specifically for the temperature window and the masa contamination profile of a tortilla oven, and this guide walks through how to pick a graphite product, how to apply it, and what to expect in the first week of switching from a competitor lube.

Why oven chains need graphite, not silicone or oil

The oven chain is the worst lubrication problem on a tortilla line. Three things happen to it that do not happen anywhere else.

1. The chain reaches sustained temperatures above 230 C inside the oven housing, with peaks higher than that near the burners.
2. The chain is exposed to airborne masa flour and steam that condenses on the cooler return run, then bakes back into a varnish on the next pass through the oven.
3. The chain has continuous load. It pulls trays, never coasts, and never gets a break from the heat.

Silicone fails on point one. Food-safe silicone is rated for sliding contact and release, not for sustained temperatures over 200 C. It vaporizes off the chain before it reaches the back end of the oven. Use silicone on the press platen and the conveyor surface, never on the oven chain.

Standard food-grade oil fails on points one and two. Oil viscosity drops sharply with heat. The fluid runs off the chain pins, drips onto the tortillas below, and leaves the wear surfaces dry within an hour. The masa flour then bonds to whatever residue is left and forms a hard varnish that grinds the chain rollers from the inside.

Graphite is different. Graphite is a solid lubricant. After application, the water carrier evaporates and leaves a layer of dry graphite particles that fill the wear gap between the chain pin and the bushing. Graphite does not flow, does not drip, and does not break down at oven temperatures. It is also inert. It does not react with masa or steam. The only way to lose graphite from the chain is to wear it off, and that is exactly what you want, because every wear cycle is friction reduction earned.

Tortilla oven temperatures and why most lubes fail above 230 C

To pick the right high temperature lubricant, you need to know what your chain actually sees. A typical tortilla oven runs the following profile:

• Bake zone air temperature: 280 C to 320 C, depending on tortilla type and line speed.
• Chain steel temperature: 220 C to 260 C in the bake zone, lower at oven entry and higher near the burner shields.
• Return run temperature: 60 C to 110 C, where condensation forms on the cooler upper chain.
• Cycle frequency: every link sees the bake zone every 30 to 90 seconds, depending on chain length.

Most petroleum oils have a flash point between 180 C and 220 C. They burn off the chain. Most synthetic oils survive higher, but their additive packages break down above 230 C, leaving a sticky residue. Most consumer-grade aerosol chain lubes are formulated for bicycle and motorcycle chains, where the operating temperature is below 100 C. They have no business inside a tortilla oven.

Graphite has a stable thermal range above 400 C in air. The water carrier in a properly formulated graphite chain lube flashes off well before the chain reaches the bake zone. By the time the chain is in the bake zone, only the dry graphite is left, and the dry graphite does what it is supposed to do.

This is why graphite is not a luxury upgrade. It is the only chemistry that survives the operating window of a real tortilla oven.

How to apply graphite chain lubricant on a running line

Application matters as much as product choice. A graphite chain lube applied incorrectly will fail just as fast as the wrong lube applied correctly. For the full step-by-step procedure, see the oven chain lubrication SOP. The summary version is below.

The standard application method is a low-pressure spray onto the chain at the cool return point, where the chain has come out of the oven, traveled around the rear sprocket, and is heading back toward the entry. This location matters because:

• The chain is cool enough that the carrier does not flash before it can wet the wear surfaces.
• The chain is moving slowly relative to its speed inside the oven, so each link gets even coverage.
• By the time the chain enters the bake zone, the carrier has fully evaporated and only the graphite remains.

Spray nozzle distance should be 6 to 10 inches from the chain. Closer than that and you waste product on the chain side plates instead of the pin and bushing surface. Farther than that and the spray fans out and wastes product on surrounding equipment.

The application pattern is a steady pass along the full length of the chain, not a burst-and-skip pattern. A burst leaves dry zones between bursts, and a dry zone is where the chain elongates first. A steady pass at walking speed delivers a thin even film.

Apply with the chain running, never with the line stopped. A stopped chain takes the lube on whichever side of each link is facing the spray head, not on the wear surfaces. A running chain delivers product into the moving pin and bushing geometry where it belongs.

Maintenance frequency, signs you are over or under lubricating

Frequency depends on line speed and oven temperature, but a starting point is daily application during the first hour of production. Most plants tune from there based on what they see in week 2.

Signs you are under-lubricating:

• Chain elongation visible on the take-up sprocket. If you are adjusting the take-up more than once a quarter, the chain is wearing.
• Audible chain noise that increases through the shift, especially at the rear sprocket.
• Visible glaze or bluing on the chain pins, indicating dry running.
• Sprocket tooth wear, especially on the drive sprocket. Sharpened or hooked teeth are a clear under-lube signal.
• Chain jam events. A jam in mid-shift almost always traces back to a dry zone or a wear-locked link.

Signs you are over-lubricating:

• Drip marks on the floor or, worse, on tortillas below the chain.
• Carbon buildup on the chain side plates that requires brushing more than once a month.
• Black soot accumulation on the oven hood and exhaust.
• Slipperiness on the floor below the return run.

The right rate puts a thin even film on the wear surfaces and produces no drip and no carbon buildup. If you see drips, you are spraying too long. If you hear noise late in the shift, you are not spraying long enough or you are missing application zones.

TortillaTek Graphite Chain Lubricant Oven, what it is and how to dose it

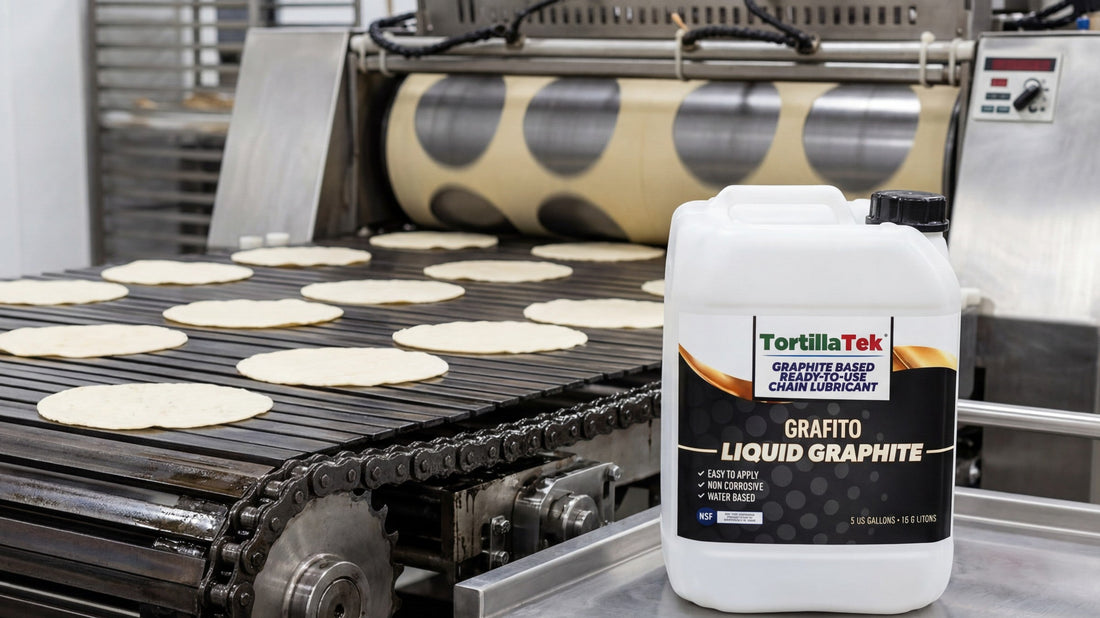

TortillaTek Graphite Chain Lubricant Oven is a water-based, ready-to-use graphite lubricant developed for the tortilla and bakery industry. The water carrier flashes off cleanly at oven entry and the product dries to a non-smoking, protective barrier on the chain. It is non-toxic, non-corrosive, odorless, and NSF Registered. Operators report that it eliminates squeaky and noisy oven slat belt chains and reduces oven slat belt maintenance time and cost.

The product ships as a 5 US gallon (18.9 L) pail and is ready to use straight from the container with no dilution. Apply with a low-pressure sprayer at the cool return point as described above.

Dosing guidance for a typical tortilla oven running 8 hours per day:

• Initial application after switchover: a steady pass along the full chain length, applied twice during shift one and once during shift two.
• Steady-state application: a steady pass along the full chain length, once per shift, applied at the start of production after warm-up.
• Re-application during long shifts (12 hour or longer): a steady half-pass at the 6 hour mark.

A common pattern from plants that switch to the TortillaTek Graphite Chain Lubricant Oven is that chain noise drops within the first 3 days, take-up adjustment frequency drops within the first month, and chain replacement intervals lengthen relative to oil-based programs. The most consistent operator-visible change is the absence of carbon buildup on the side plates, which usually meant a Friday afternoon brushing job before the switch.

The product is NSF Registered and appropriate for above-product oven chains under standard SQF, BRCGS, and FSSC 22000 audit treatment. If your specific line geometry creates an incidental contact path between the chain and a tortilla, talk to your auditor about whether an H1 silicone is required for the affected chain section instead. For a plain-English breakdown of NSF tiers, see NSF H1 vs H2 vs H3, what each tier really means. Most plants do not have a contact-path geometry, but a few do, so confirm with your auditor before assuming.

Switching from a competitor lube, what to expect in week 1

Switching graphite brands or switching from oil to graphite is straightforward, and the timeline is predictable. Here is the week 1 pattern most plants see.

Day 1, before the switch. Brush the chain at the start of the day, removing any loose carbon and old residue. You do not need to flush the chain or solvent-clean it. Graphite bonds to a clean dry surface better than to a competitor product layer.

Day 1, first application. Apply the initial-switchover dose of the TortillaTek graphite chain lubricant. Run the line at normal speed. Because the carrier is water-based, you should see no smoke at the oven entry, even on the first application.

Day 2 to 3. Chain noise starts to drop. The chain feels quieter at the rear sprocket. If you take readings of motor amperage on the drive, you may see a small reduction from reduced friction.

Day 4 to 7. The graphite layer has fully built up in the wear gap. The chain should be running smoothly with no drip and no audible noise. If you see any drip on the floor, you are over-applying. Reduce the per-pass volume and observe.

Week 2. Move to the steady-state schedule. Most plants find one application per shift is the right rhythm. Adjust based on what your chain tells you. The chain will tell you. Listen at the rear sprocket every Monday and you will know whether to add or subtract a pass.

Tortillaworld has supplied food-grade lubricants to tortilla plants Since 2012. If your line is running a competitor product and you want to know whether the switch is worth doing, send a photo of the chain at end of shift and a brief description of how often you are adjusting take-up. We can tell you within a day whether graphite will move the needle on your specific line, or whether the better fix is upstream of the lube choice. If you already know graphite is the right call, you can get pricing and lead time on the graphite chain lubricant for tortilla ovens directly.
